EGR PLATES
Choose
Style A or Style B
Read Below
EGR Plate Style A
Style A this style plate leaves room for two vacuum ports that are usually capped off should you want to keep them for adding something else later.

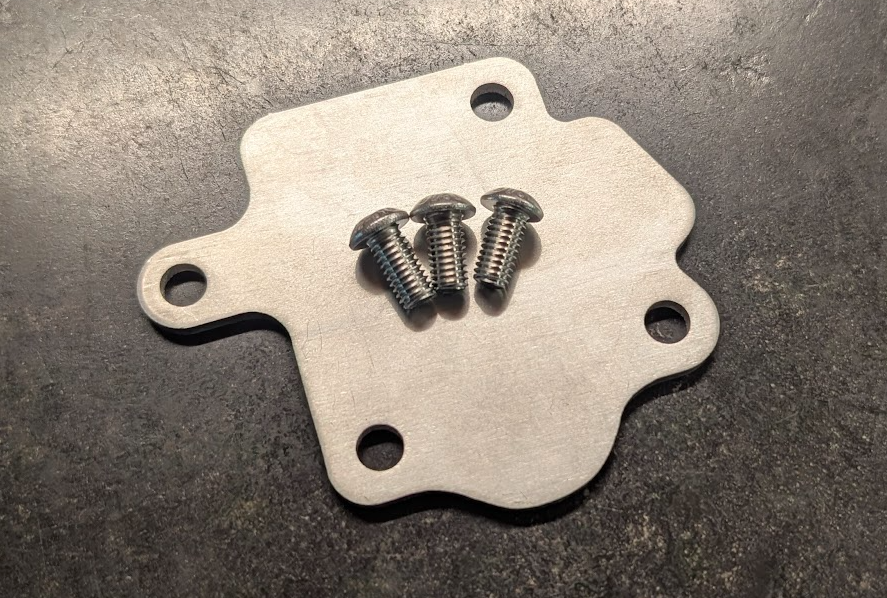

EGR Plate Style B
Style B is preferred if you have removed the two vacuum ports next to the EGR. This makes for a cleaner look and you don't have to worry about a vacuum cap cracking and causing erratic idling.
If you're considering or have already performed a Weber carburetor conversion on your 86-93 B2000 or B2200, you may have noticed that there are several unnecessary components that can be removed for a cleaner look. One of these components is the EGR valve, which is rendered obsolete by the conversion. Once removed you will need a plate for this area of the intake to cover the holes left behind.
These plates are made of aluminum and come with 3 Stainless M6-1.0 x 12 mm Allen Hex button head socket cap bolts for a nice clean look.
These EGR plates now feature a throttle spring tab that has been repositioned for better performance. During testing, it was found that the higher location of the tab is more effective for the spring. The previous lower tab location had placed the spring under unnecessary tension, especially during highway speeds. Despite the change, the product still functions flawlessly.
To install, first remove the EGR valve and clean the mounting surface using a brake cleaner or a similar surface cleaner. Once the surface is clean, apply a thin layer of RTV sealant to it. Next, install the plate and secure it with bolts. The whole process should take around 10 minutes to complete.
If you would like to order they are $30.00 each.
FREE shipping to anywhere in the USA.
Credit Card, Debit Card, Cash App, Google Pay, and Apple Pay Accepted using the Buy Now button.
If you want to use PayPal, and help me avoid some fees.
Send $30.00 to merch@mazdaminitruckin.com
If using Venmo
Send $30.00 to @Mitch-Costilow
Please let me know in the "what's this for" area of Venmo or the "Add a Message" part of PayPal what style you want (A or B) and your shipping address.
